- Order number: ZR-757-5805-HB-S264

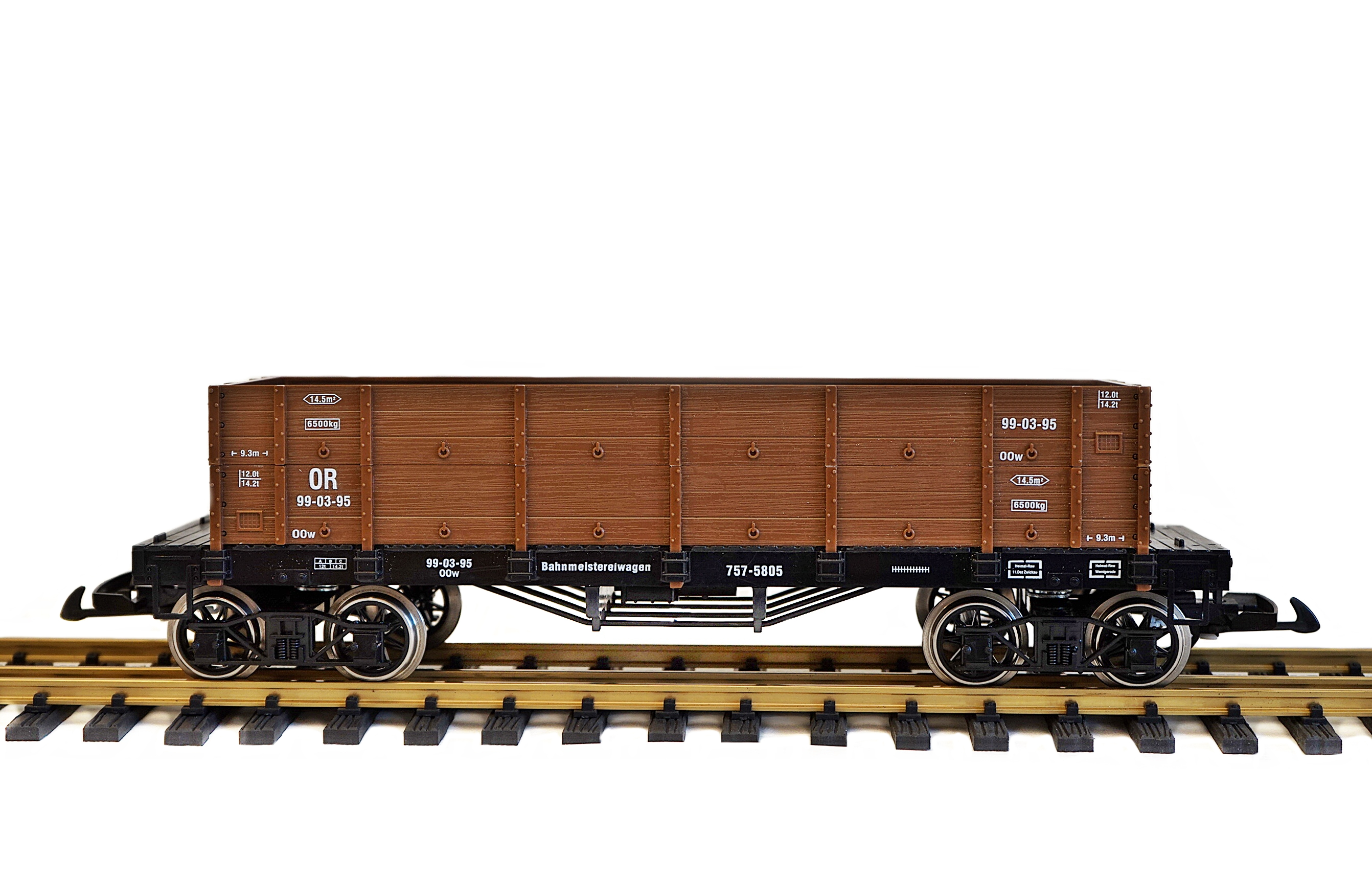

Zenner venture highboard standard gauge track II 64mm rebuilt by Scale 2m (narrow gauge 45mm) on Scale 2 (standard gauge / standard gauge 64mm)
Such cars, originally coming from the United States, have since the First World War in Europe until the road today.
The nominal size track II is a standardized size of NEM or NMRA for model trains that we comply with this model, the control track at the level of the track width of 64mm.
The scale of 1: 22.5 is not met.
Rather, we have a slightly smaller scale with the standard gauge model. By Higher Place the platform about 3 mm to NEM buffer beams can be mounted so that the car comes close to the model.
The car is usually made not in stock, but is at your request for you.
Delivery time about 7 days
Technical specifications:
LüP 415 mm
Bogies with LGB compatible couplings, detachable
Wheel diameter 36mm
Climbs circle with 900 mm radius
Scale 2 = 64 mm
stainless steel spokes wheels 3 mm raised suspension than gauge IIm
This car is based on a track G Vineyard Cart of 45mm and is rebuilt by us on the standard gauge track II 64mm.
It is equipped with LGB coupling and has cost reasons a detachable central buffer
The following options are used to the car more in the direction of the track to bring 2 standard
Option kit buffer screem with 2 rigid buffers for self-assembly
Option: kit screw coupling for self-installation. The LGB coupling is unscrewed it.
Option: Plunger buffer with spring, 20mm diameter for a distance of 77,7mm: 29 Euro
Option: buffer screem with Plunger buffer for this distance. Height buffer screem height 18mm, width 100mm or 110mm
Option wheelsets diameter 35 mm instead of 30 mm. Then the car looks more like a standard gauge cars.
