Boerman high platform car scale II (64mm, 1: 22.5) Es 5520

Boerman high side car DR Es 5520, scale II (64mm).

The same model is also available under a different article number from Train-Line45

Car 552 9128-8

Availability please inquire

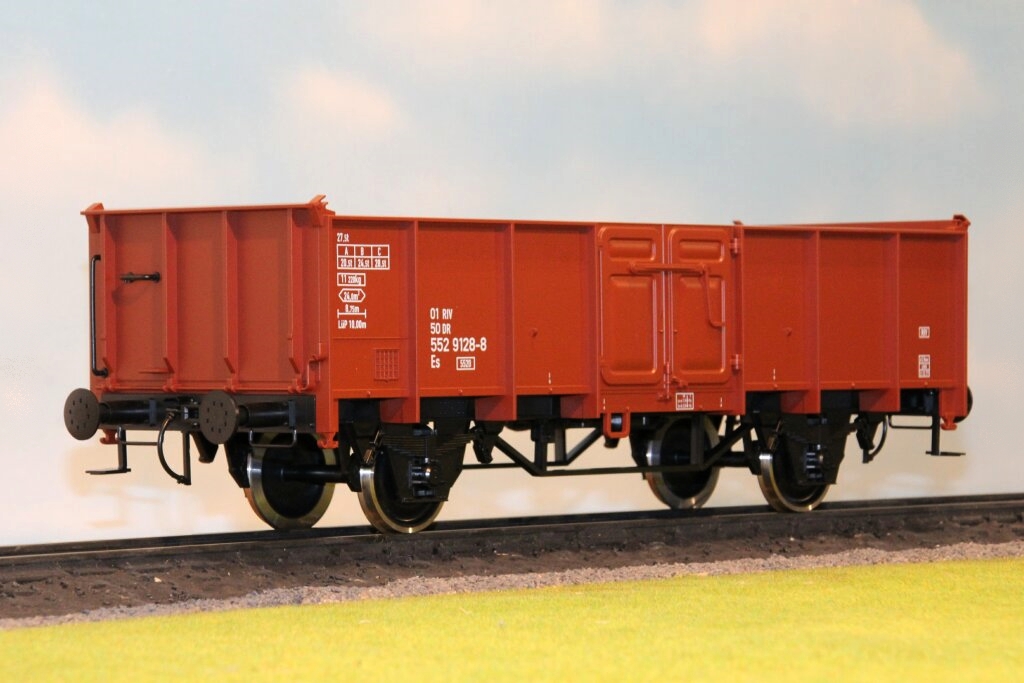

One picture shows the caption of the Ommu 40.0





    Standard track wagon on a scale of 1: 22.5 for 64mm gauge
    made of high quality "Luran®" plastic for outdoors
    Edelstahlradreifen
    The screw coupling comes later. At the moment the car is still equipped with funnel couplings. A conversion is possible.
    Buffer dimensions according to NEM.
    Springing buffers
    Ball bearings axles that are also sprung
    LüP approx. 44.5cm
    Car body length approx. 40cm
    Carriage width 13.5cm
    Car height from top edge track 12.2cm
    Center distance 24cm
    Wheel diameter 44cm
    Body painted and finely printed




THE MODEL

There was a lot of emphasis on the exact implementation in Maßtab 1: 22.5. The model is made of high quality plastic. The car approaches the valid Track II standards. The model is equipped with stainless steel wheel tires. Ball bearings axles ensure the best driving behavior. The buffers are spring-loaded we also have the axles.

The model was also developed as a load for the rolling blocks and trolleys. Thus, you can relive the Rollbock traffic in the model again.

We recommend using this model on curved tracks with a radius of 120 cm or more. It is technically possible to drive on narrower bends up to 90 cm, but the wheelsets then grind laterally on the profiles. But they do not yet climb.
