Sound module with potentiometer, for WLAN module or DCC G scale

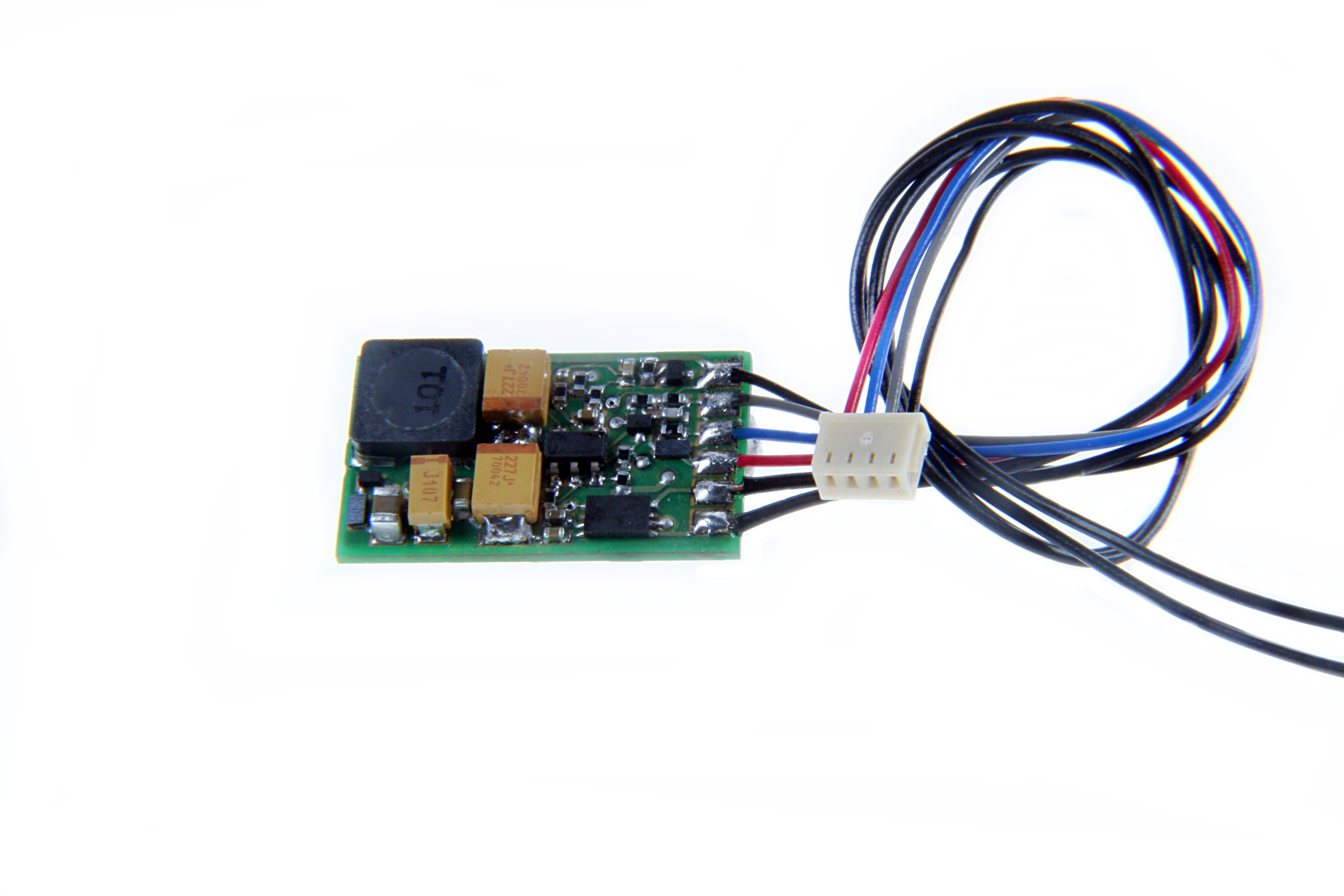

Dietz sound module Micro IS4 with potentiometer for Train-Line45 WLAN module or DCC locomotive decoder G

which have a Susi interface

in 3 different sound variations

Steam, Diesel, Electric (all standard sounds)

When ordering please ask what you would like to have for a sound.

Susi interface for Train Line45 WLAN module or DCC locomotive decoder



All micro modules have stationary and driving noises, bugle and / or bell, as well as brake squeals.
Steam locomotives can optionally be operated synchronously by reed contact, Hall sensor or voltage controlled.
Micro modules have a maximum of 14 individually retrievable sounds, can play 4 channels simultaneously and are with
our software SUSI SoundManager partly playable with own sounds.
Micro modules are exclusively for operation on SUSI interface.

The modules themselves can be recorded with sound. The available sound files are on ours
Page available at Dietz for download.


Micro-IS4 modules have the following additional features:
- Volume of each sound separately adjustable.
- Switchable alternative volume (eg for night mode or indoors / outdoors).
- Can be used together with a suitable decoder for analog operation.
- Manual transmission function acoustically synchronous to the driving behavior of the corresponding vehicles.
- Modules can be completely recorded with self-created sounds.

Please select speakers with 8 ohms.
