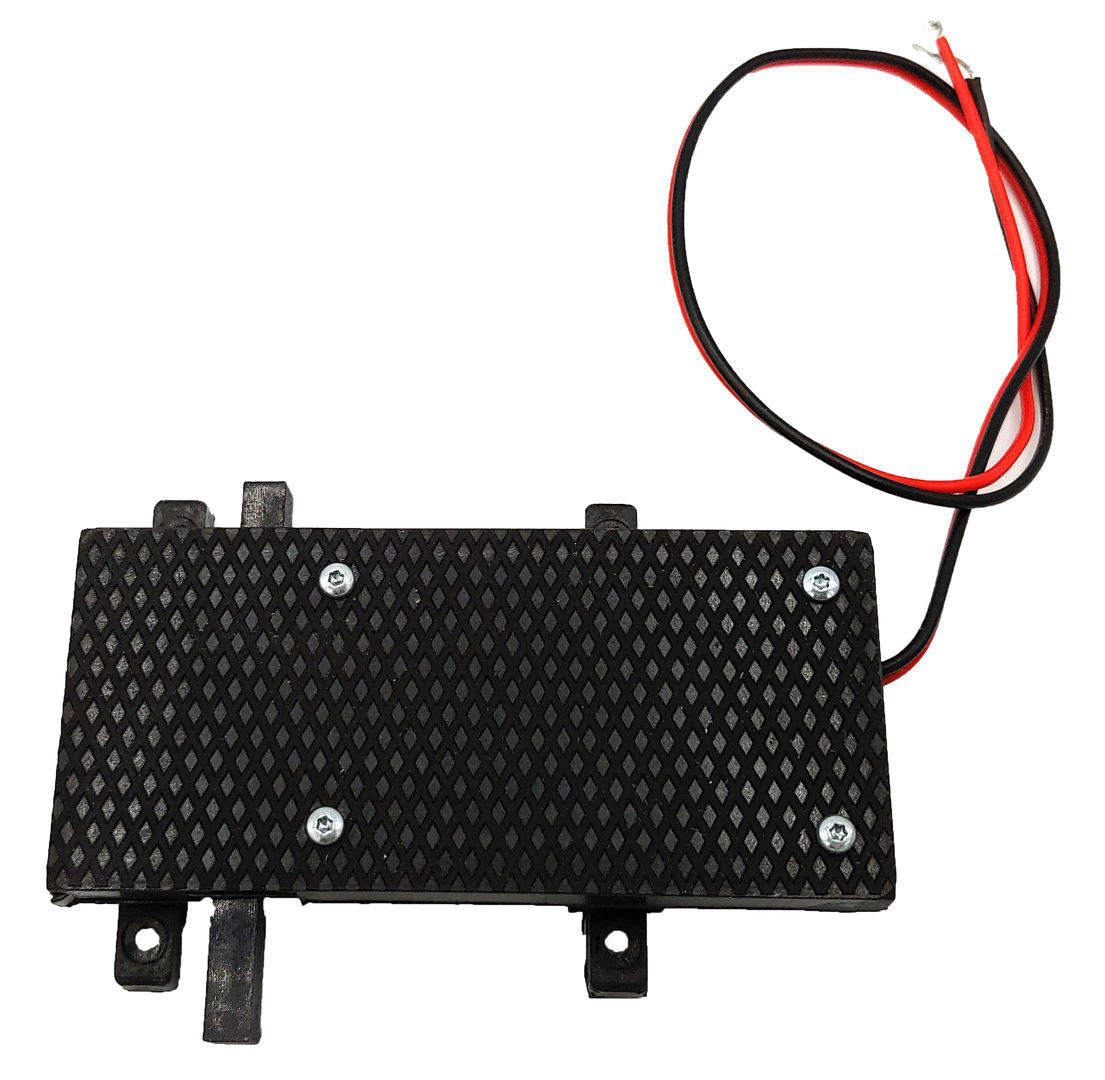

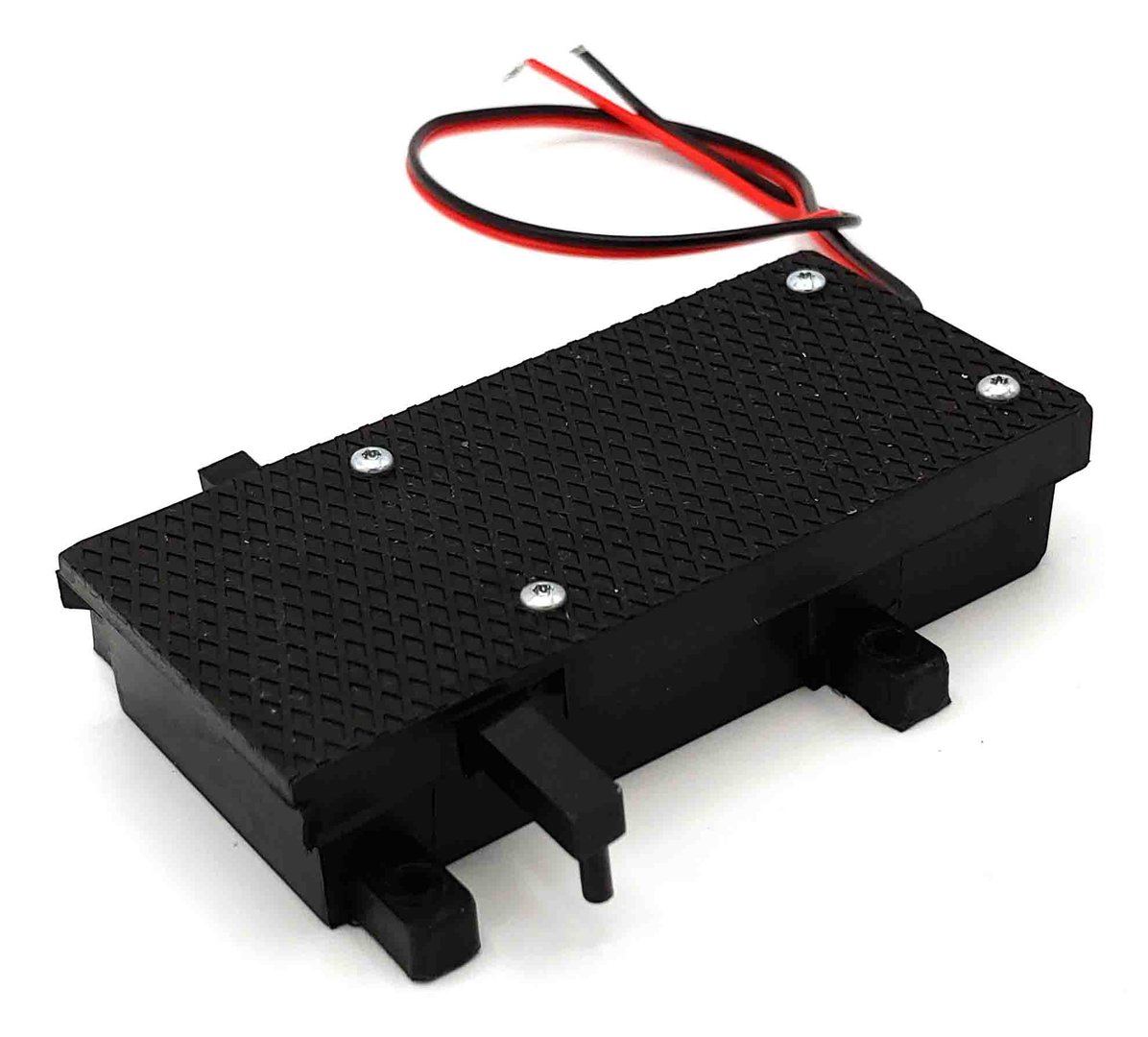

MD SWD Servo - Point machine analog / digital Gauge G

MD SWD Servo - Point machine analog / digital Gauge G

It fits among other things to common points of PIKO, TRAIN-LINE45, THIEL and most other well-known track G brands

This very small, powerful servo drive can switch signals / points slowly in line with prototypes.
In addition, lanterns can be connected directly to the decoder and controlled by function / point address. Another advantage is the positioning speed
as well as all necessary parameters can be configured.

All outputs are invertible and start positions can be set. In addition, the function output
during the setting process flash (switch lanterns to new standard). The lanterns are available in various versions.
The function output is dimmable and can, for example, be used for signal lanterns or turnout lanterns.
A resistor for LEDs is already integrated. The module supports CV, POM and register programming.


Features at a glance:

- 2048 turnout addresses
- Outputs independently addressable
- 1 turnout output
- 1 function output

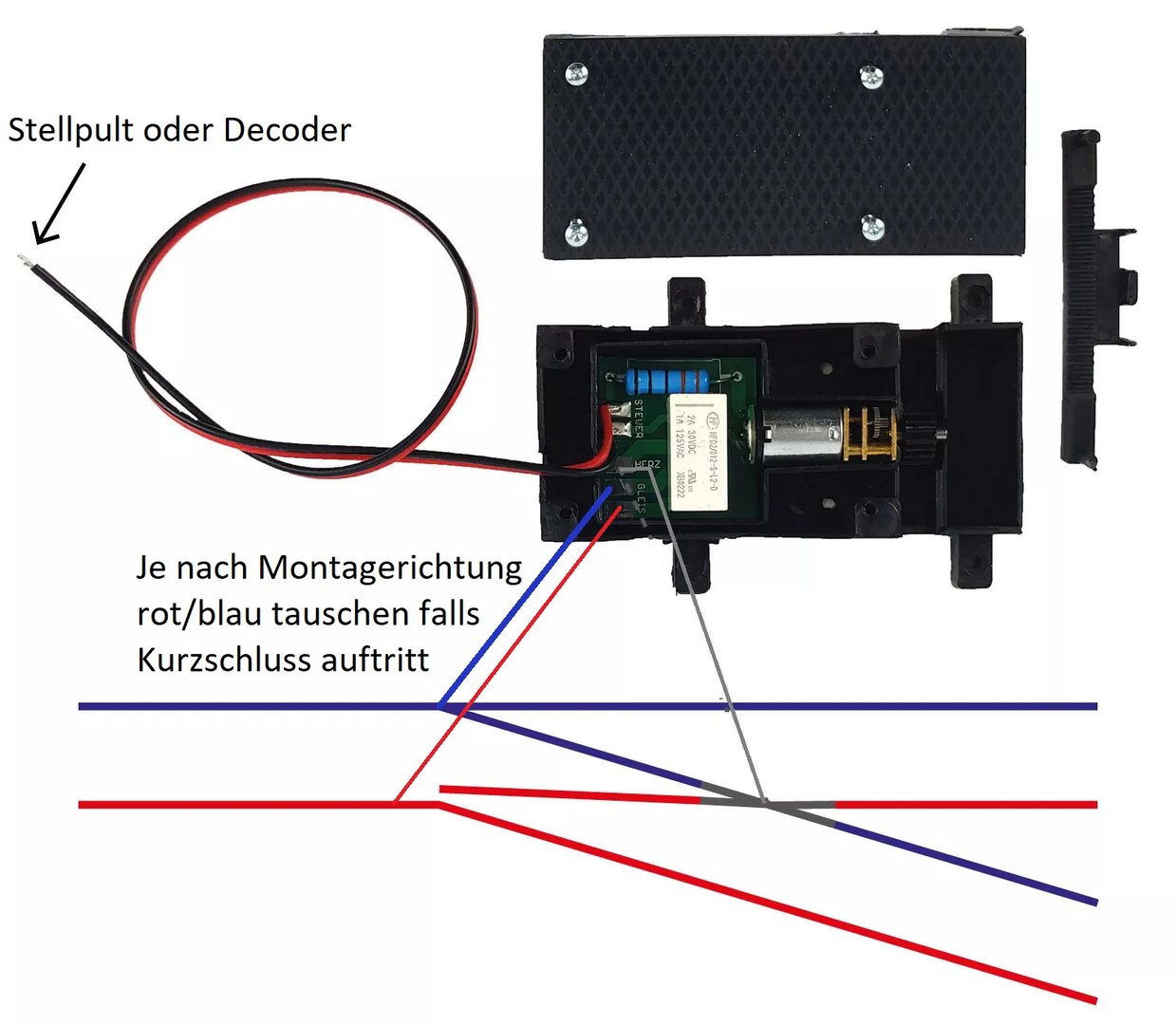

- Core polarization
- Switch lantern with switchable next to switch
- Start position adjustable
- Flashing adjustable
- dimmable outputs
- Exemplary switching of switches / signals
- Adjustable speed
- slightly smaller than EPL drive
- switchable by loco address (F-key)
- Switchable via turnout address (arrow keys, accessory address)
- Control, CV read / write possible with any DCC control panel
