MD AKWt (8-way diverter, 16-function decoder)

Probably the most powerful turnout / function decoder. It can be loaded with up to 5.5A, each output with 1A.

In turnout mode (delivery, CV29 Bit7 = 1), it can switch 8 analog points!

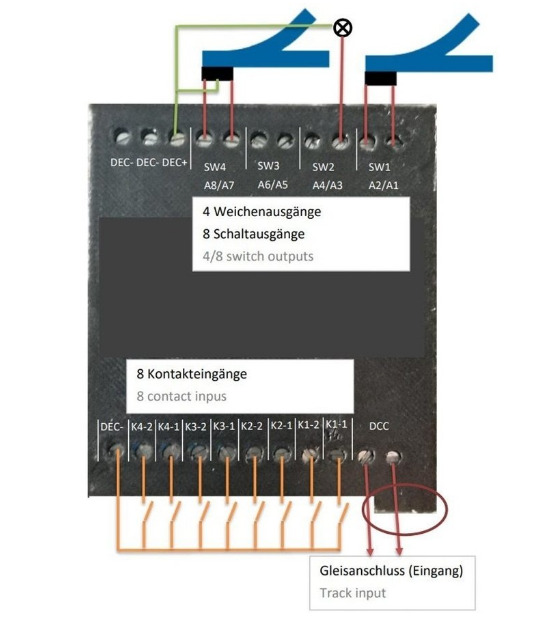

This allows you to wire 8 switches centrally from this decoder and switch them via remote control unit.

This means that even large station or goods areas can be completely controlled.

In locomotive mode (CV29 Bit7 = 0), or has 16 function outputs available!

In addition, other combination options are available (special mode for 3-way points, uncoupler tracks, time or continuous mode, automatic reset, and much more ...).
The outputs are dimmable and can, for example, be used for signal lanterns.
The module supports CV, POM and register programming.

The nuclear power plant should be housed protected (eg model house).

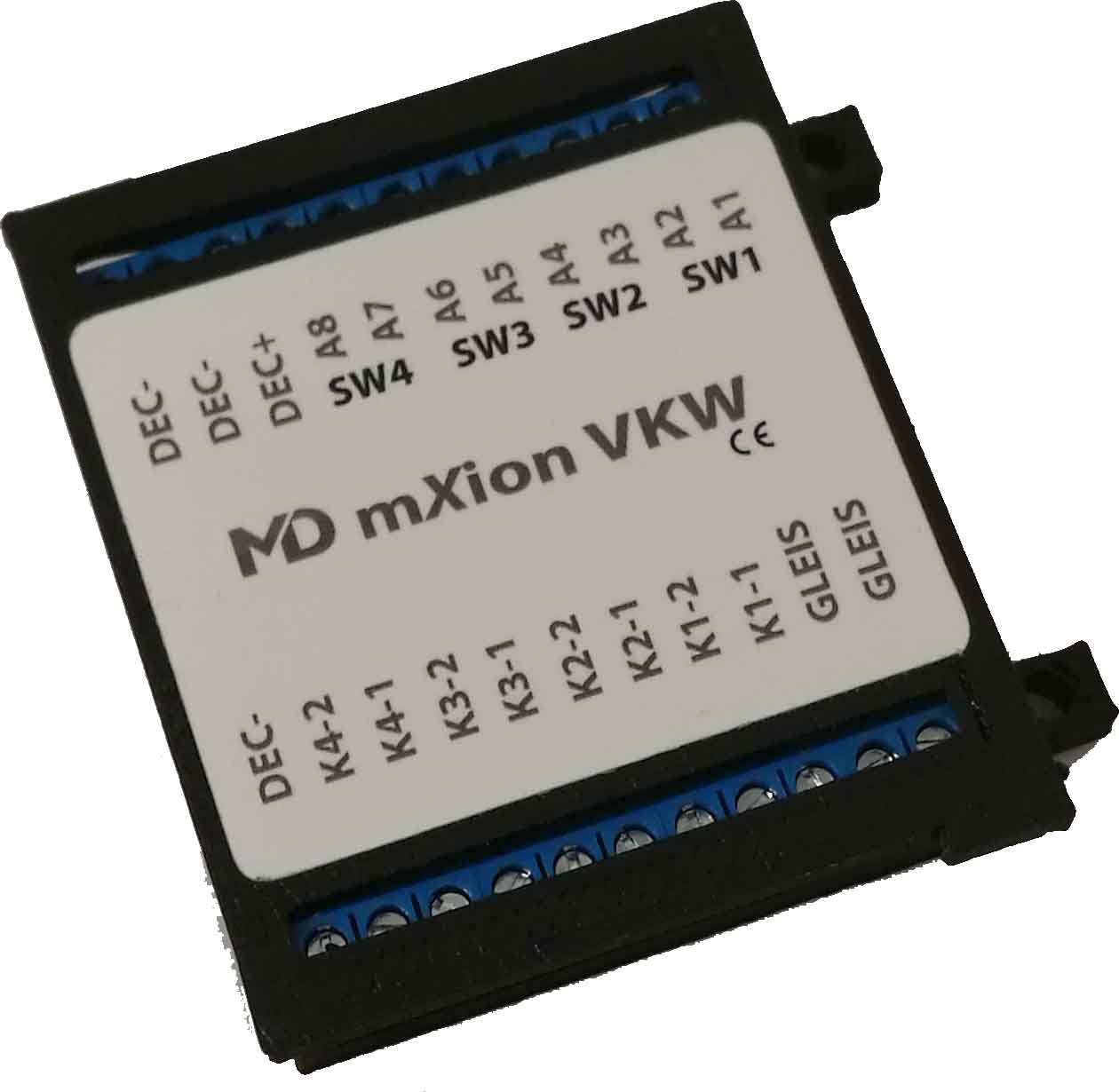

The decoder is housed in a 3D printed black case.

Features at a glance:

- 10239 locomotive addresses
- F0 - F28
- 2048 turnout addresses
- Outputs independently addressable
- 8 switch outputs or 16 function outputs can be used
- Uncoupler mode for uncoupler tracks
- Switch lantern with switchable next to switch
- Start position adjustable
- Also switchable 3-pole turnouts (old LGB, H0, motorized turnouts).
- 3-way switch mode
- dimmable outputs
- Control, CV read / write possible with any DCC control panel
- 60x66 cm
