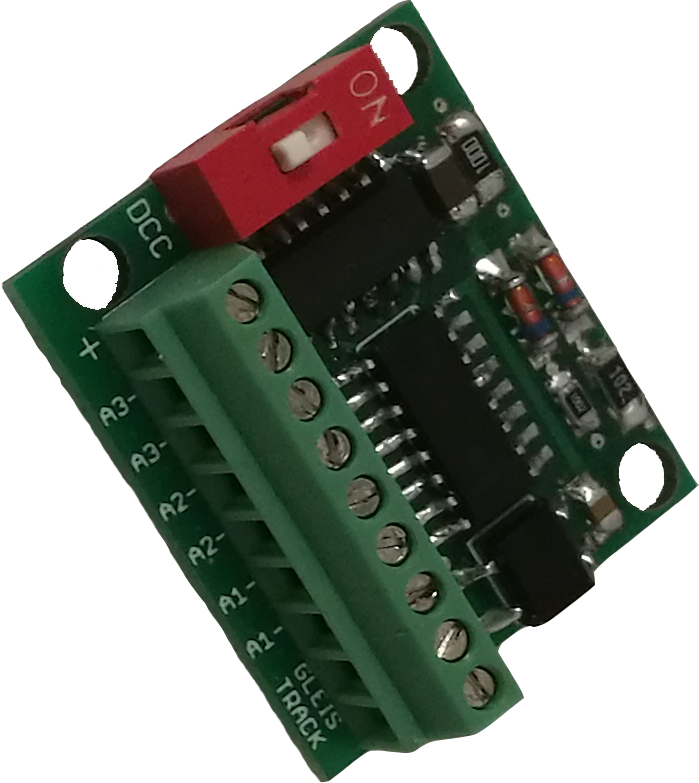

MD USD (6-channel switching decoder)

MD USD 6-Channel DCC / MM Switch Decoder

A small 6-channel switching decoder with up to 18 effects on each output. These effects are: on or off delay, gas lamps, fire, various flashing, dimming, etc. So it is possible to use the 6 channels for running lights, light patterns, construction site operation, home life, fairgrounds. The decoder has the SDF system known from the FSD. The use of turnout addresses makes it ideal for stationary use. The USD can use DCC and Märklin-Motorola protocols.

features:

     2048 turnout addresses
     6 switching outputs
     18 effects per output
     Outputs independently addressable
     Outputs dimmable
     Outputs invertible
     CV reading and writing with any DCC and MM_Centrale possible

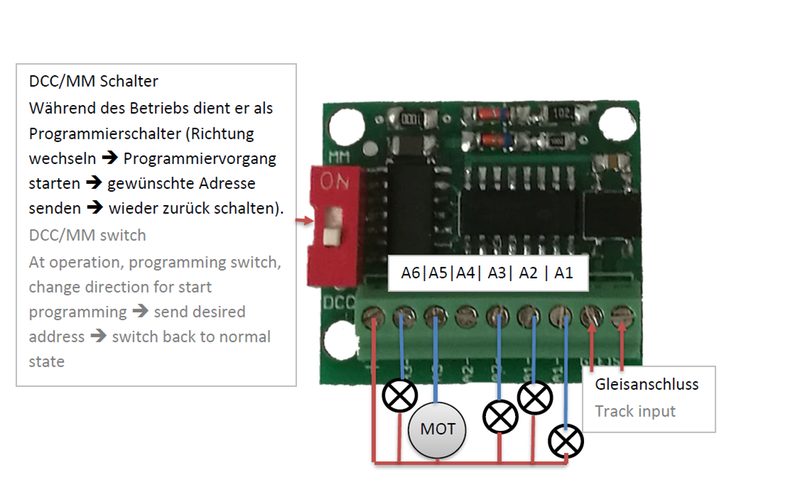

     Programming also possible via programming switch
     Dimensions: 27 x 25 mm
